Is there any way to upload larger than 100mb when using CF?

[sanhpv]

I found out there is a chunks addon that will help me with this. But is there any other way, for example adding a subdomain for the attachment and disabling its proxy? Can anyone guide me?



[Toasty]

For reliable upload we could implement the tus protocol https://tus.io/



[Toasty]

To implement the tus.io protocol into your XenForo installation using Nginx, you'll need to configure the tus server and set up Nginx to handle tus requests. Here's a general outline of the process:

1. Install tusd (tus.io server):​

• You can use tusd, the official server implementation for tus.io. Install it on your server:
  bash
  Copy code
  wget https://github.com/tus/tusd/releases/download/v1.4.0/tusd_linux_amd64.tar.gz
  tar -xzf tusd_linux_amd64.tar.gz
  sudo mv tusd /usr/local/bin/
• Make sure tusd is executable:
  bash
  Copy code
  sudo chmod +x /usr/local/bin/tusd

2. Configure tusd:​

• Create a directory to store uploads:
  bash
  Copy code
  mkdir -p /var/www/tus/uploads
• Run the tusd server:
  bash
  Copy code
  tusd -dir /var/www/tus/uploads -behind-proxy

3. Configure Nginx:​

• Add a location block in your Nginx configuration for tus uploads:
  nginx
  Copy code
  server {
  listen 80;
  server_name yourdomain.com;

  location /tus/ {
  proxy_pass http://127.0.0.1:1080;
  proxy_set_header Host $host;
  proxy_set_header X-Real-IP $remote_addr;
  proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
  proxy_set_header X-Forwarded-Proto $scheme;

  # Optional: increase max body size for large uploads
  client_max_body_size 0;
  proxy_connect_timeout 600;
  proxy_send_timeout 600;
  proxy_read_timeout 600;
  }

  # Other XenForo configurations...
  }
• Ensure that the proxy_pass directive points to the tusd server's address. If tusd is running locally, use http://127.0.0.1:1080.

4. Integrate with XenForo:​

• Modify your XenForo installation to handle tus.io upload requests. You may need to create a custom XenForo addon or modify existing upload handling scripts to support resumable uploads using the tus protocol.

5. Test the Setup:​

• Upload a large file using a tus.io client to ensure everything is working correctly. Check the Nginx and tusd logs for any errors.

This setup will allow you to handle large, resumable file uploads through tus.io in your XenForo installation using Nginx.



[sanhpv]

To implement the tus.io protocol into your XenForo installation using Nginx, you'll need to configure the tus server and set up Nginx to handle tus requests. Here's a general outline of the process:

1. Install tusd (tus.io server):​

• You can use tusd, the official server implementation for tus.io. Install it on your server:
  bash
  Copy code
  wget https://github.com/tus/tusd/releases/download/v1.4.0/tusd_linux_amd64.tar.gz
  tar -xzf tusd_linux_amd64.tar.gz
  sudo mv tusd /usr/local/bin/
• Make sure tusd is executable:
  bash
  Copy code
  sudo chmod +x /usr/local/bin/tusd

2. Configure tusd:​

• Create a directory to store uploads:
  bash
  Copy code
  mkdir -p /var/www/tus/uploads
• Run the tusd server:
  bash
  Copy code
  tusd -dir /var/www/tus/uploads -behind-proxy

3. Configure Nginx:​

• Add a location block in your Nginx configuration for tus uploads:
  nginx
  Copy code
  server {
  listen 80;
  server_name yourdomain.com;

  location /tus/ {
  proxy_pass http://127.0.0.1:1080;
  proxy_set_header Host $host;
  proxy_set_header X-Real-IP $remote_addr;
  proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
  proxy_set_header X-Forwarded-Proto $scheme;

  # Optional: increase max body size for large uploads
  client_max_body_size 0;
  proxy_connect_timeout 600;
  proxy_send_timeout 600;
  proxy_read_timeout 600;
  }

  # Other XenForo configurations...
  }
• Ensure that the proxy_pass directive points to the tusd server's address. If tusd is running locally, use http://127.0.0.1:1080.

4. Integrate with XenForo:​

• Modify your XenForo installation to handle tus.io upload requests. You may need to create a custom XenForo addon or modify existing upload handling scripts to support resumable uploads using the tus protocol.

5. Test the Setup:​

• Upload a large file using a tus.io client to ensure everything is working correctly. Check the Nginx and tusd logs for any errors.

This setup will allow you to handle large, resumable file uploads through tus.io in your XenForo installation using Nginx.

ToastyCó cách nào khác đơn giản hơn không?



[Toasty]

Đơn giản nhất có thể (theo như tôi biết).



[Toasty]

You can add the subdomain in your nginx site config and disable the proxy for that sub domain. But, if you are using HSTS then that will not help you.. you are also defeating the purpose of Cloudflare by showing your IP to the server.



[Toasty]

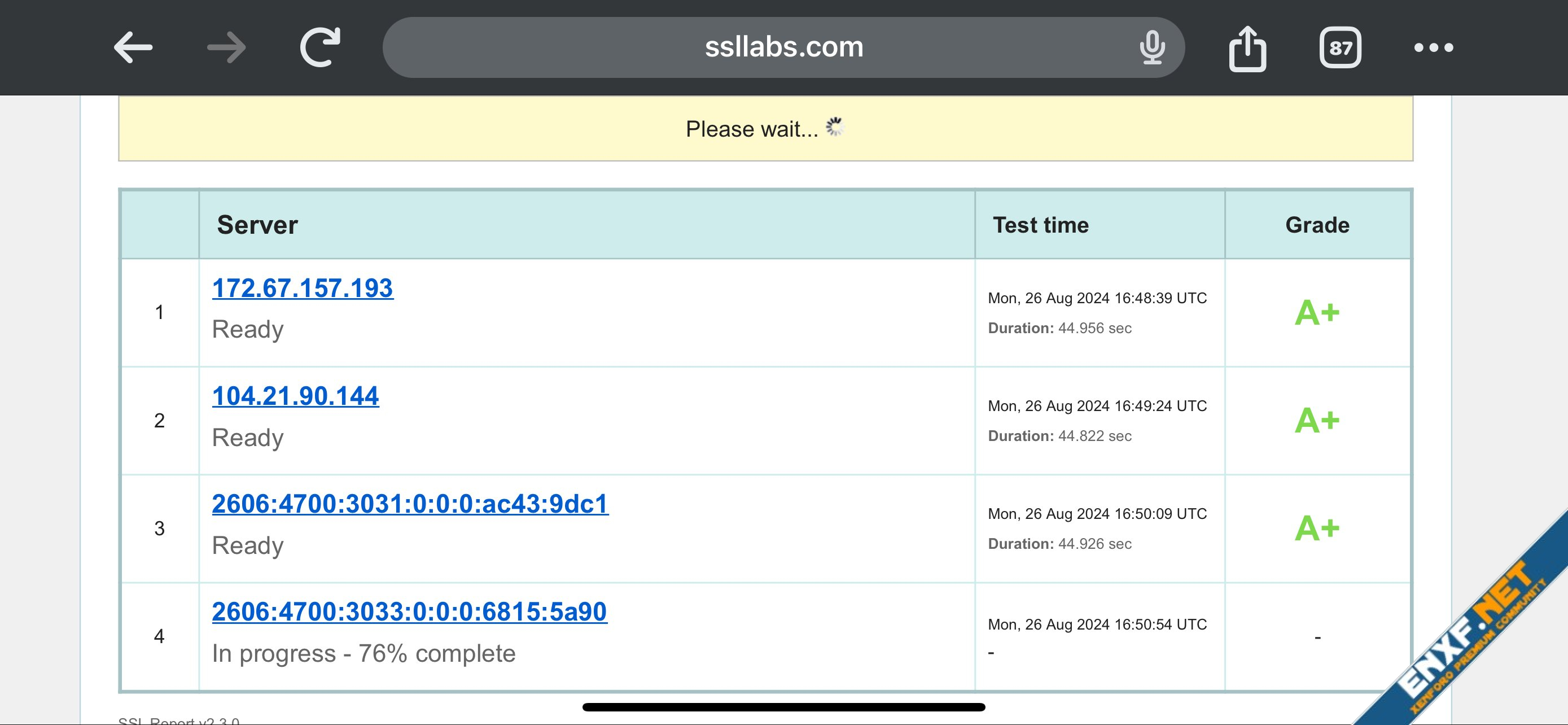

This is what you want A+ across the board on your SSL. Having anything less than an “A” will hurt your google rankings.



[sanhpv]

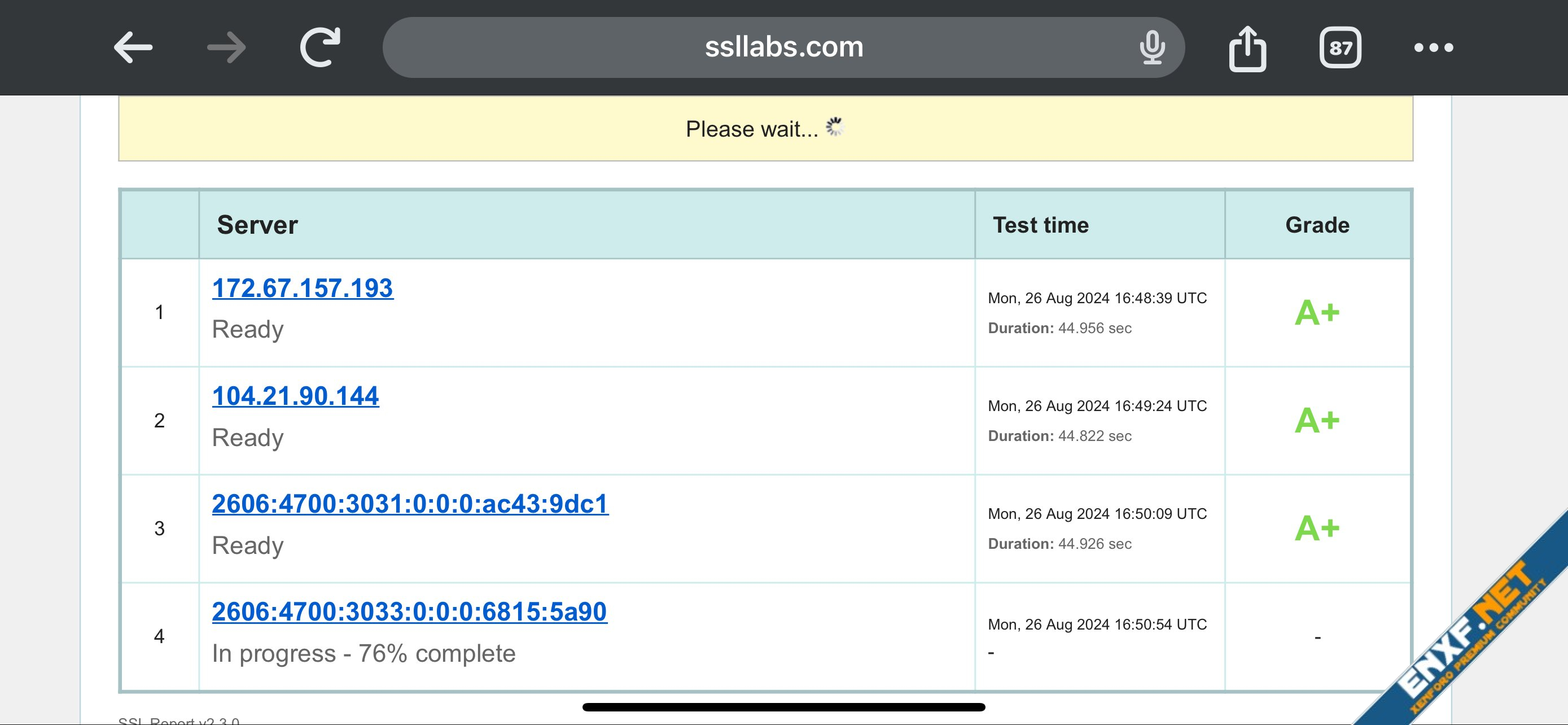

View attachment 40908


This is what you want A+ across the board on your SSL. Having anything less than an “A” will hurt your google rankings.

Toastyomg. below A is low google ranking, all my sites are B



[Toasty]

It’s easy to fix, go read the results of your site on that website I just shared and it will tell you what you are doing wrong.



[sanhpv]

It’s easy to fix, go read the results of your site on that website I just shared and it will tell you what you are doing wrong.

Toastyyes sir I fixed them to A now



[Toasty]

A “B” rating won’t hurt you too bad. Just means there is room for improvement. You can also use it to gauge your security pitfalls.



[Splicho]

I found out there is a chunks addon that will help me with this. But is there any other way, for example adding a subdomain for the attachment and disabling its proxy? Can anyone guide me?

sanhpvWhy not just use chunks addon? It works perfectly fine.



[sanhpv]

Why not just use chunks addon? It works perfectly fine.

Splichobecause it has an upload limit of 100 seconds



[Splicho]

because it has an upload limit of 100 seconds

sanhpvCan't find anything in the addon that is related to a upload limitation, specifically for 100 seconds.

What you mean is probably the limitation on the CloudFlare end. Cloudflare has a timeout limitation of 100 seconds.

This means that if the final upload process takes more than 100 seconds, including rebuilding the attachment from the file chunks and sending it to XenForo internal storage, S3 or Spaces, the process will timeout and you will get an error.

https://imgur.com/ar3lMjj

In other words: That issue is on cloudflare, not on the addon or xenforo itself. So whatever you gonna use, it will timeout after 100 seconds.
